When earthmoving equipment starts behaving strangely, most site managers go looking at the obvious suspects. The pump. The cylinder. The fluid level. What they often miss is the component sitting quietly between those parts, directing every movement the machine makes.
Hydraulic control valves govern where fluid goes, how fast it gets there, and how much force the system applies. On an excavator, TLB, grader, or bulldozer, every function depends on these valves working correctly. When they do not, the symptoms are easy to misread and the diagnosis is frequently wrong.
This post covers how control valves work on earthmoving equipment, what failure looks and feels like from the operator seat, why Cape Town construction conditions accelerate valve wear, and what a correct valve diagnosis and repair involves.
What Hydraulic Control Valves Actually Do
A hydraulic system generates force through pressurised fluid. The pump creates that pressure. But pressure alone does not move an excavator arm or lift a loader bucket. Something has to decide which cylinder gets fluid, in which direction, and at what rate. That is the job of the control valve.
On earthmoving equipment you will typically find three categories of valve doing this work.
Directional control valves determine which actuator receives fluid and in which direction it flows. When an operator moves a lever to extend the boom, a directional valve opens to send fluid to the correct side of the boom cylinder. Release the lever and the valve centres, stopping flow and holding the load.
Pressure relief valves act as the safety limit of the system. They are set to a specific pressure threshold. When system pressure reaches that point, the relief valve opens and diverts fluid back to the tank, preventing damage to pumps, hoses, and cylinders from overpressure events.
Flow control valves regulate how fast fluid moves through a circuit. They determine the speed of movement. A bucket that swings too fast or an arm that drops faster than the operator commands is often a flow control valve issue rather than anything wrong with the cylinder itself.
On modern excavators and larger earthmoving equipment, these functions are often integrated into a main control valve block, a single unit containing multiple valve spools managed simultaneously. A fault anywhere in that block affects the functions connected to it.
How to Recognise Valve Failure on a Working Machine
Valve problems are among the most frequently misdiagnosed hydraulic faults on construction sites. The symptoms are real and disruptive, but they point in the direction of valves rather than screaming it outright. Here is what to watch for.
One function works, another does not
On an excavator with a valve block fault, the boom may lift normally while the bucket curl feels sluggish or unresponsive. This pattern, where specific functions are affected while others work fine, is a strong indicator that the problem is in the valve circuit for that particular function rather than in the pump or fluid supply, which would affect the whole system.
Jerky or uneven movement
Smooth hydraulic movement depends on consistent, controlled fluid flow. A valve spool that is sticking, worn, or contaminated causes flow to start and stop unpredictably. The operator feels this as jerky, hesitant movement. On a grader blade this makes precise levelling work difficult. On an excavator it makes controlled digging and placing of material harder than it should be.
Drift under load
A correctly functioning directional control valve holds its position when centred. If a loaded bucket or boom arm drifts downward when the operator releases the controls, the valve is not sealing properly. Internal leakage across the valve spool is allowing fluid to bypass and the load to move. This is a safety concern on any machine carrying a load.
Overheating without an obvious cause
Heat in a hydraulic system comes from work done against resistance. A pressure relief valve that has drifted below its correct setting dumps fluid back to the tank before the system reaches working pressure. The system generates heat but produces less useful work. Operators notice the machine feels weak and the fluid temperature rises faster than normal. They often assume the cooler is blocked or the fluid is old. The relief valve is frequently the actual cause.
Loss of force on specific functions
If the grader blade struggles to cut through compacted ground that it handled easily last week, or the TLB backhoe cannot break material it previously managed without difficulty, a pressure relief valve set too low is a likely cause. The system is relieving pressure before it reaches the level needed to do the work.

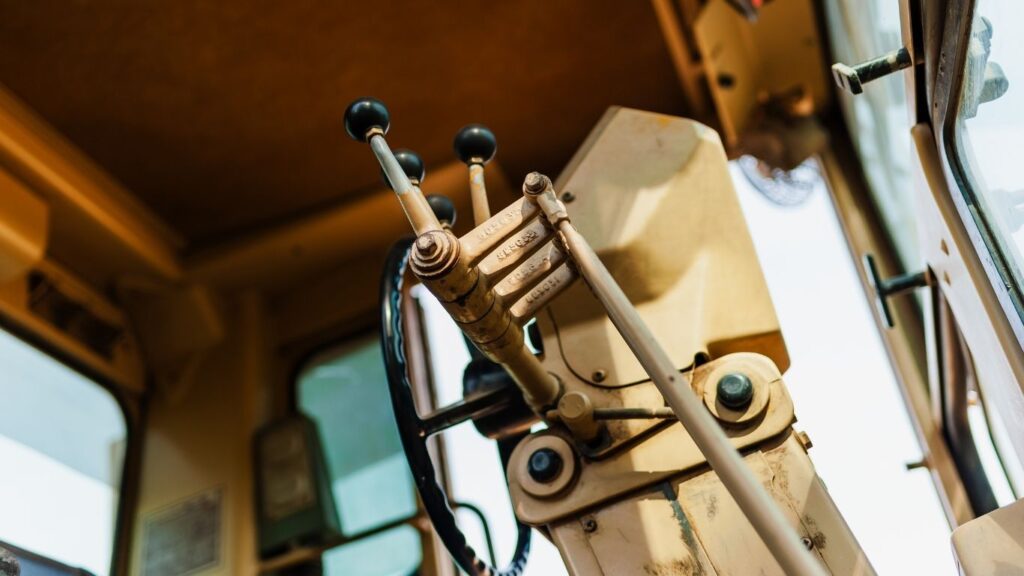

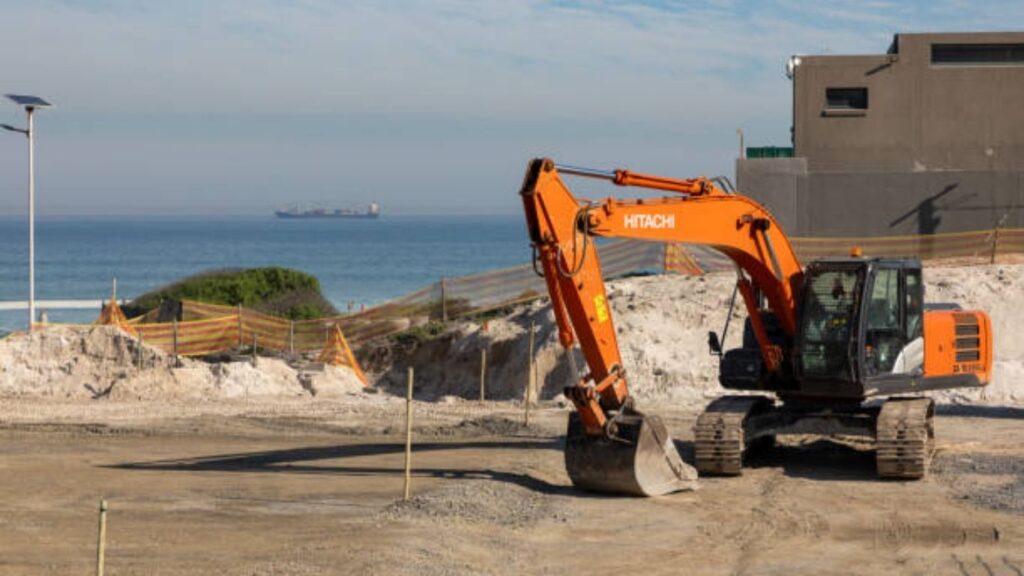

Why Cape Town Construction Sites Are Hard on Control Valves
Hydraulic valves are precision components. The clearances between a valve spool and its bore are measured in microns. That level of precision means valves are sensitive to anything that disrupts their operating environment.
Cape Town construction sites create specific conditions that accelerate valve wear beyond what manufacturers typically account for in standard service intervals.
The Cape Flats generates substantial airborne dust from sand and fine soil on dry summer days. Projects in Bellville, Blackheath, Mitchells Plain, and along major road and infrastructure corridors run machines through this dust continuously. Fine particles find their way into hydraulic systems through reservoir breathers, worn seals, and filler caps that are not replaced correctly after fluid top-ups. Once inside the system, these particles circulate with the fluid and score the precision surfaces of valve spools and bores. A scored spool leaks internally and loses the ability to direct flow or hold pressure accurately.
Summer heat in Cape Town pushes ambient temperatures on open sites well above what the fluid was designed to work in comfortably. Heat reduces fluid viscosity. Thinner fluid leaks past valve spools more readily, increasing internal bypass and reducing both force output and directional precision. Seals in the valve body harden and crack faster in repeated heat cycles.
Winter rain and coastal humidity introduce moisture. Water that enters the system through condensation or poor sealing causes corrosion inside valve bodies. Corroded spool surfaces create the same scoring and leakage problems as contamination from dust, and the damage is often more severe because corrosion attacks the base metal rather than just the surface.
Most operators adjust their fluid change and filter replacement schedules to account for dust. Fewer adjust their valve inspection schedules to reflect the same conditions. That gap is where valve problems develop unnoticed.
The Difference Between a Valve That Can Be Serviced and One That Cannot
Not every valve problem requires replacement. Understanding the distinction saves cost and reduces the time a machine spends out of service.
A valve spool that has accumulated contamination but has not been scored or damaged can often be removed, cleaned thoroughly, inspected under magnification, and reinstalled with new seals. The machine returns to correct operation without any new parts. This is a straightforward service procedure when caught early.
A pressure relief valve that has drifted from its set pressure can be recalibrated on a test bench to the correct setting. This is a quick procedure that restores full system performance. Many operators do not realise that relief valves can drift and that recalibration is an option before replacement.
A valve spool that has been scored by contaminated fluid, or a valve seat that has been damaged by overpressure or debris, cannot be returned to correct operation by cleaning alone. Internal leakage will continue regardless of how thoroughly the valve is cleaned. These components need to be replaced. Continuing to run a machine with a damaged valve spool accelerates wear in every component downstream, including cylinders and motors that rely on correct flow direction and pressure.
The only way to determine which situation applies is to remove the valve, inspect it properly, and test it against the manufacturer’s specification. Guessing based on symptoms alone leads to either unnecessary parts replacement or continued operation with a component that is damaging the rest of the system.
Why Incorrect Relief Valve Settings Damage the Whole System
Pressure relief valves are the most commonly overlooked valve type on earthmoving equipment, and incorrect settings cause damage that goes well beyond the valve itself.
A relief valve set too low protects nothing. The system relieves pressure before it reaches the working level needed to do the job. The machine feels weak. Operators push it harder and run it longer trying to achieve the same output. The pump works harder and wears faster. Fluid overheats. Seals in cylinders degrade faster because the fluid temperature is consistently higher than it should be.
A relief valve set too high is equally destructive in a different direction. Pressure in the system is allowed to exceed what hoses, fittings, cylinder seals, and valve bodies were designed for. Hoses fail suddenly at high pressure, which is dangerous to anyone nearby. Cylinder seals bypass and external leaks appear. In worst cases, pressure spikes cause catastrophic failure of a fitting or hose in a confined location.
Relief valves should be tested and verified at every major service interval. On earthmoving equipment working in the Cape Town construction environment, where duty cycles are heavy and conditions push systems hard, this check matters more than the service manual interval alone might suggest. Valves drift over time. A valve that was set correctly twelve months ago may not be at the correct setting today.
What a Correct Valve Diagnosis Involves
Diagnosing valve problems correctly requires more than observing machine behaviour. Symptom observation tells you something is wrong and narrows down where to look. It does not tell you exactly what the fault is or what it will take to correct it.
A proper valve diagnosis starts with pressure testing at multiple points in the hydraulic circuit. Pressure readings tell you whether the pump is delivering correct pressure, whether the relief valve is set correctly, and where pressure is dropping across the system. A significant drop across a valve that should be open indicates internal leakage or restriction.
Flow testing measures whether fluid volume matches the pump’s specification. Low flow points to either pump wear or valve restriction. Comparing pressure and flow data together identifies which component is responsible.
Physical inspection of the valve spool and bore is the final step. The spool comes out, is measured for wear against manufacturer tolerances, and the bore is inspected for scoring or corrosion. This inspection determines whether cleaning and resealing will return the valve to specification or whether replacement is necessary.
At DMA Hydraulics and Pneumatic Solutions, our team carries out this full diagnostic process on earthmoving equipment. We test at the machine where possible and bring components to our Paarden Eiland workshop for inspection and rebuild when required. We carry hydraulic valve components and seals for a wide range of earthmoving equipment and can source replacements quickly to minimise time off the job.
Frequently Asked Questions
How do I know if my excavator has a valve problem rather than a pump problem?
If specific functions are affected while others work normally, the fault is more likely in the valve circuit for those functions. A pump fault affects the whole system. Pressure and flow testing will confirm which component is responsible.
Can a hydraulic valve be repaired or does it need to be replaced?
It depends on the condition of the spool and bore. Valves with contamination but no physical damage can be cleaned, resealed, and returned to service. Valves with scored or corroded surfaces need replacement. A physical inspection under magnification is the only reliable way to determine this.
How often should relief valves be tested on earthmoving equipment in Cape Town?
At every major service interval, and more frequently if the machine is working in heavy dust, high heat, or long daily hours. Relief valves drift over time and conditions in Cape Town accelerate that process.
Is jerky machine movement always a valve problem?
Jerky movement is a common valve symptom, particularly sticking or worn spools. It can also result from air in the system or low fluid levels. A full diagnostic check is needed to confirm the cause before any repair is carried out.
Can DMA Hydraulics carry out valve repairs on site in Cape Town?
Our team can carry out on-site pressure and flow testing across Cape Town and the Western Cape. Components requiring physical inspection or rebuild are taken to our Paarden Eiland workshop. We work to minimise time off the job wherever possible.
My machine overheats but the cooler and fluid have been checked. What else could it be?
A pressure relief valve set below its correct threshold causes the system to dump fluid to the tank continuously, generating heat without producing useful work. This is a common cause of unexplained overheating on earthmoving equipment and is identified through pressure testing.
Get the Right Diagnosis Before the Problem Gets Bigger
Valve problems on earthmoving equipment get worse with use, not better. A sticking spool that causes jerky movement today becomes a failed spool that stops the machine tomorrow. A relief valve set incorrectly accelerates wear across pumps, hoses, and cylinders every hour the machine runs.
If your excavator, TLB, grader, or bulldozer is showing any of the symptoms described in this post, contact DMA Hydraulics and Pneumatic Solutions. We are based in Paarden Eiland, Cape Town, and our team carries out hydraulic diagnostics, valve inspection, pressure testing, and repair for earthmoving equipment across the Western Cape.
Getting the diagnosis right the first time saves you the cost of replacing parts that did not need replacing and protects the components that would have failed next.
